black & decker

DR550-B3LZ

  • View parts by Products
  • View parts by Drawing
Model Type: 3
Model #DR550-B3LZ Qualify for free shipping on orders over$150!
Type 3

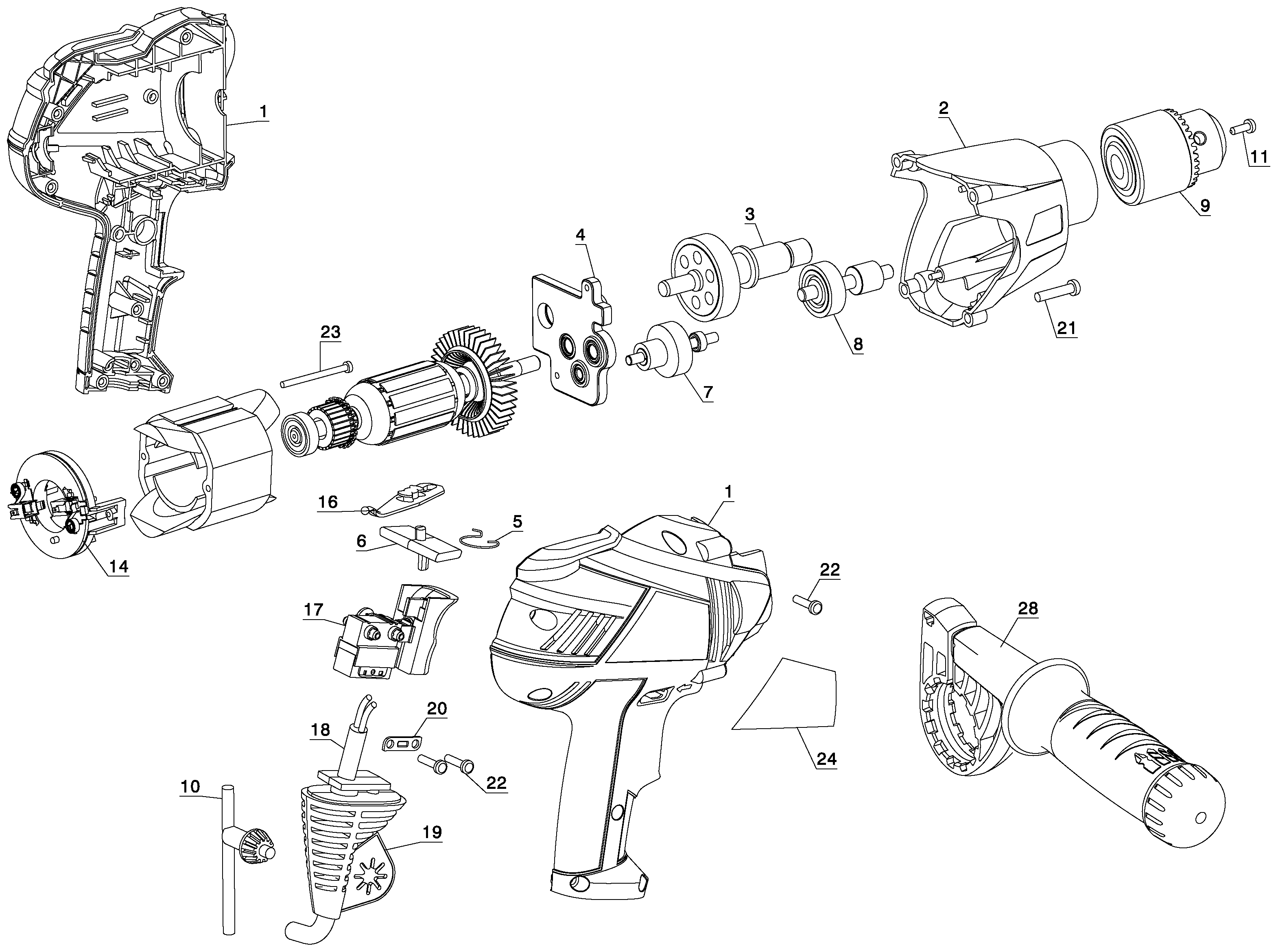

Click the #Number to see the part in the interactive diagram. Showing 22 Parts

#1 - HOUSING ASSY

  • Part # 90546380 i
  • Description HOUSING ASSY
  • Availability Discontinued
  • List Price $13.81
  • Your Price $13.81
  • Note :

#2 - GEARCASE W/BRG

  • Part # 636518-00S i
  • Description GEARCASE W/BRG
  • Availability Discontinued
  • List Price $9.61
  • Your Price $9.61
  • Note :

#3 - OUTPUT SPINDLE

  • Part # 632686-00S i
  • Description OUTPUT SPINDLE
  • Availability In Stock. Limited Quantities
  • List Price $7.82
  • Your Price $7.82
  • Note :

#4 - REAR BRG. PLT. ASSY.

  • Part # 636519-00 i
  • Description REAR BRG. PLT. ASSY.
  • Availability In Stock. Limited Quantities
  • List Price $5.12
  • Your Price $5.12
  • Note :

#5 - SPRING

  • Part # 629167-00 i
  • Description SPRING
  • Availability inStock
  • List Price $1.00
  • Your Price $1.00
  • Note :

#6 - BAR

  • Part # 630240-00 i
  • Description BAR
  • Availability Discontinued
  • List Price $1.41
  • Your Price $1.41
  • Note :

#7 - INTERMED SPINDLE

  • Part # 632680-00 i
  • Description INTERMED SPINDLE
  • Availability In Stock. Limited Quantities
  • List Price $2.43
  • Your Price $2.43
  • Note :

#8 - INTERMED SPINDLE

  • Part # 632683-00S i
  • Description INTERMED SPINDLE
  • Availability In Stock. Limited Quantities
  • List Price $4.99
  • Your Price $4.99
  • Note :

#9 - CHUCK 13MM

  • Part # 621050-00 i
  • Description CHUCK 13MM
  • Availability In Stock. Limited Quantities
  • List Price $8.14
  • Your Price $8.14
  • Note :

#10 - CHUCK KEY 13MM

  • Part # 621400-00 i
  • Description CHUCK KEY 13MM
  • Availability inStock
  • List Price $1.58
  • Your Price $1.58
  • Note :

#11 - SCREW

  • Part # 605256-01 i
  • Description SCREW
  • Availability inStock
  • List Price $1.29
  • Your Price $1.29
  • Note :

#14 - BRUSH RING ASY

  • Part # 5140092-63 i
  • Description BRUSH RING ASY
  • Availability inStock
  • List Price $5.65
  • Your Price $5.65
  • Note :

#16 - BAR,PIVOT

  • Part # 633510-00 i
  • Description BAR,PIVOT
  • Availability inStock
  • List Price $1.00
  • Your Price $1.00
  • Note :

#17 - SWITCH

  • Part # 90542231 i
  • Description SWITCH
  • Availability In Stock. Limited Quantities
  • List Price $12.93
  • Your Price $12.93
  • Note :

#18 - CORD

  • Part # 330073-98 i
  • Description CORD
  • Availability In Stock. Limited Quantities
  • List Price $16.37
  • Your Price $16.37
  • Note :

#19 - CORD PROTECTOR

  • Part # 637678-00 i
  • Description CORD PROTECTOR
  • Availability inStock
  • List Price $1.00
  • Your Price $1.00
  • Note :

#20 - CORD CLAMP

  • Part # 329301-00 i
  • Description CORD CLAMP
  • Availability inStock
  • List Price $1.00
  • Your Price $1.00
  • Note :

#21 - SCREW

  • Part # 330019-32 i
  • Description SCREW
  • Availability inStock
  • List Price $1.28
  • Your Price $1.28
  • Note :

#22 - SCREW

  • Part # 330019-03 i
  • Description SCREW
  • Availability inStock
  • List Price $1.29
  • Your Price $1.29
  • Note :

#23 - SCREW

  • Part # 330019-63 i
  • Description SCREW
  • Availability inStock
  • List Price $1.00
  • Your Price $1.00
  • Note :

#24 - NAME PLATE

#28 - SIDE HANDLE

  • Part # 614670-00 i
  • Description SIDE HANDLE
  • Availability In Stock. Limited Quantities
  • List Price $4.53
  • Your Price $4.53
  • Note :
