black & decker

BDCDE120

  • View parts by Products
  • View parts by Drawing
Model Type: 1
Model #BDCDE120 Qualify for free shipping on orders over$150!
Type 1

Recall Note -
Not sold individually

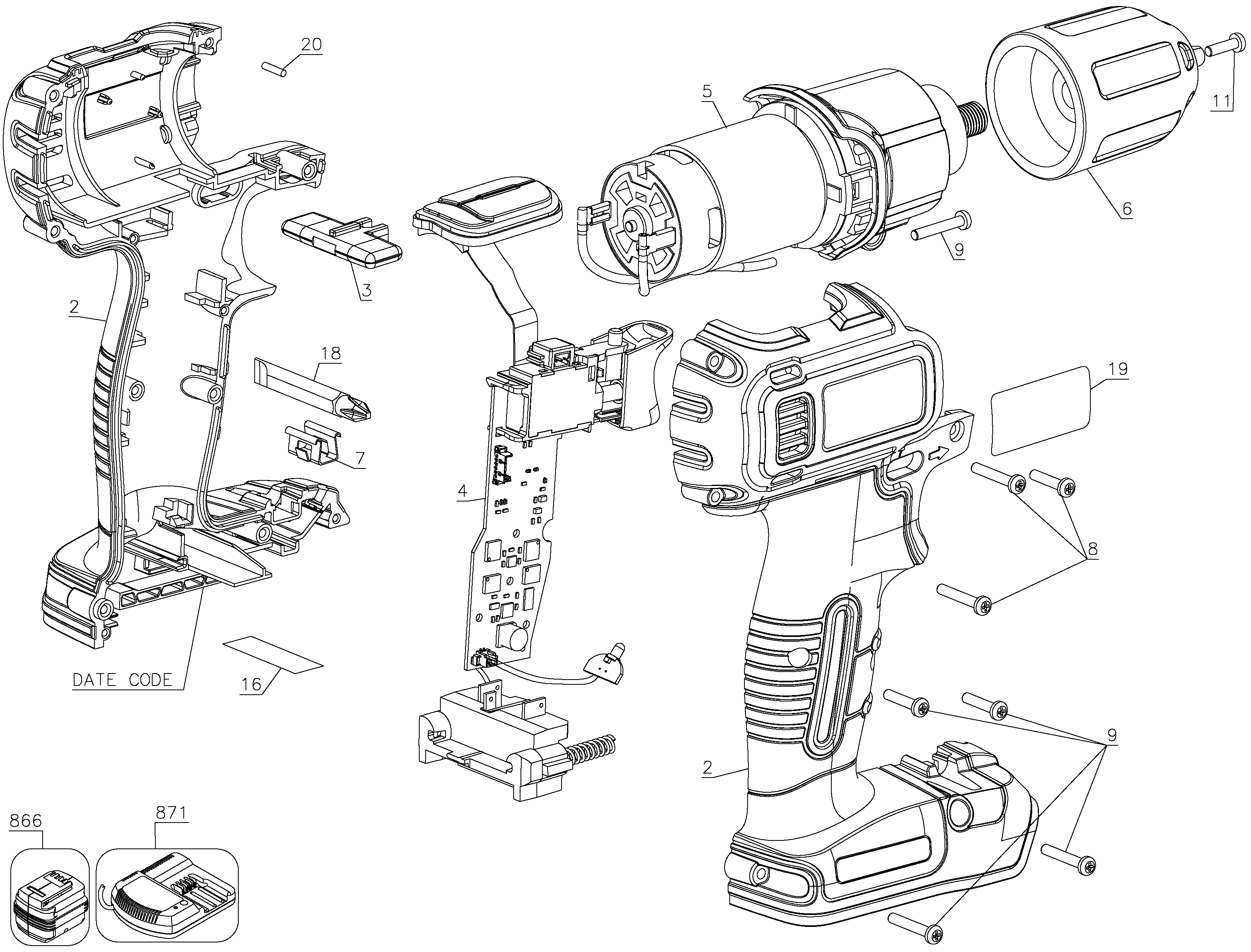

Click the #Number to see the part in the interactive diagram. Showing 17 Parts

#2 - HOUSING SA

  • Part # 90591660 i
  • Description HOUSING SA
  • Availability Discontinued
  • List Price $6.51
  • Note : N/A

#3 - ACTUATOR FWD/REV

  • Part # 90595436 i
  • Description ACTUATOR FWD/REV
  • Availability Discontinued
  • List Price $1.10
  • Note : N/A

#4 - SWITCH ASSEMBLY

  • Part # 90601046 i
  • Description SWITCH ASSEMBLY
  • Availability Discontinued
  • List Price $46.55
  • Note : N/A

#5 - MOTOR & GEARBOX

  • Part # 90591659-01 i
  • Description MOTOR & GEARBOX
  • Availability inStock
  • List Price $35.74
  • Note : N/A

#6 - CHUCK

  • Part # 90595753 i
  • Description CHUCK
  • Availability In Stock. Limited Quantities
  • List Price $7.14
  • Note : N/A

#7 - HOLDER

  • Part # 148354-03 i
  • Description HOLDER
  • Availability inStock
  • List Price $1.16
  • Note : N/A

#8 - SCREW

  • Part # 5101046-00 i
  • Description SCREW
  • Availability inStock
  • List Price $1.10
  • Note : N/A

#9 - SCREW

  • Part # 5101046-01 i
  • Description SCREW
  • Availability In Stock. Limited Quantities
  • List Price $1.10
  • Note : N/A

#11 - SCREW

  • Part # 149518-01 i
  • Description SCREW
  • Availability inStock
  • List Price $1.16
  • Note : N/A

#16 - WARNING LABEL

  • Part # 90603374 i
  • Description WARNING LABEL
  • Availability In Stock. Limited Quantities
  • List Price $1.10
  • Note : N/A

#18 - HOLDER BIT

  • Part # 90541186 i
  • Description HOLDER BIT
  • Availability In Stock. Limited Quantities
  • List Price $1.10
  • Note : N/A

#19 - RATING LABEL

#20 - PIN

  • Part # 498618-00 i
  • Description PIN
  • Availability In Stock. Limited Quantities
  • List Price $1.00
  • Note : N/A

#866 - BATTERY

#871 - CHARGER

  • Part # 90640340 i
  • Description CHARGER
  • Availability Available
  • List Price $17.26
  • Note : NOT INCLUDED

# - CHARGER

  • Part # 90590282-01 i
  • Description CHARGER
  • Availability Substituted (New Part# 90640340)
  • List Price
  • Note : NOT INCLUDED

# - MOTOR & GEARBOX

  • Part # 90591659 i
  • Description MOTOR & GEARBOX
  • Availability Substituted (New Part# 90591659-01)
  • List Price
  • Note : N/A
