N86C

  • View parts by Products
  • View parts by Drawing
Model Type: 0
Model #N86C Qualify for free shipping on orders over$150!
Type 0

Recall Note -
N86C 7152 000 and Higher

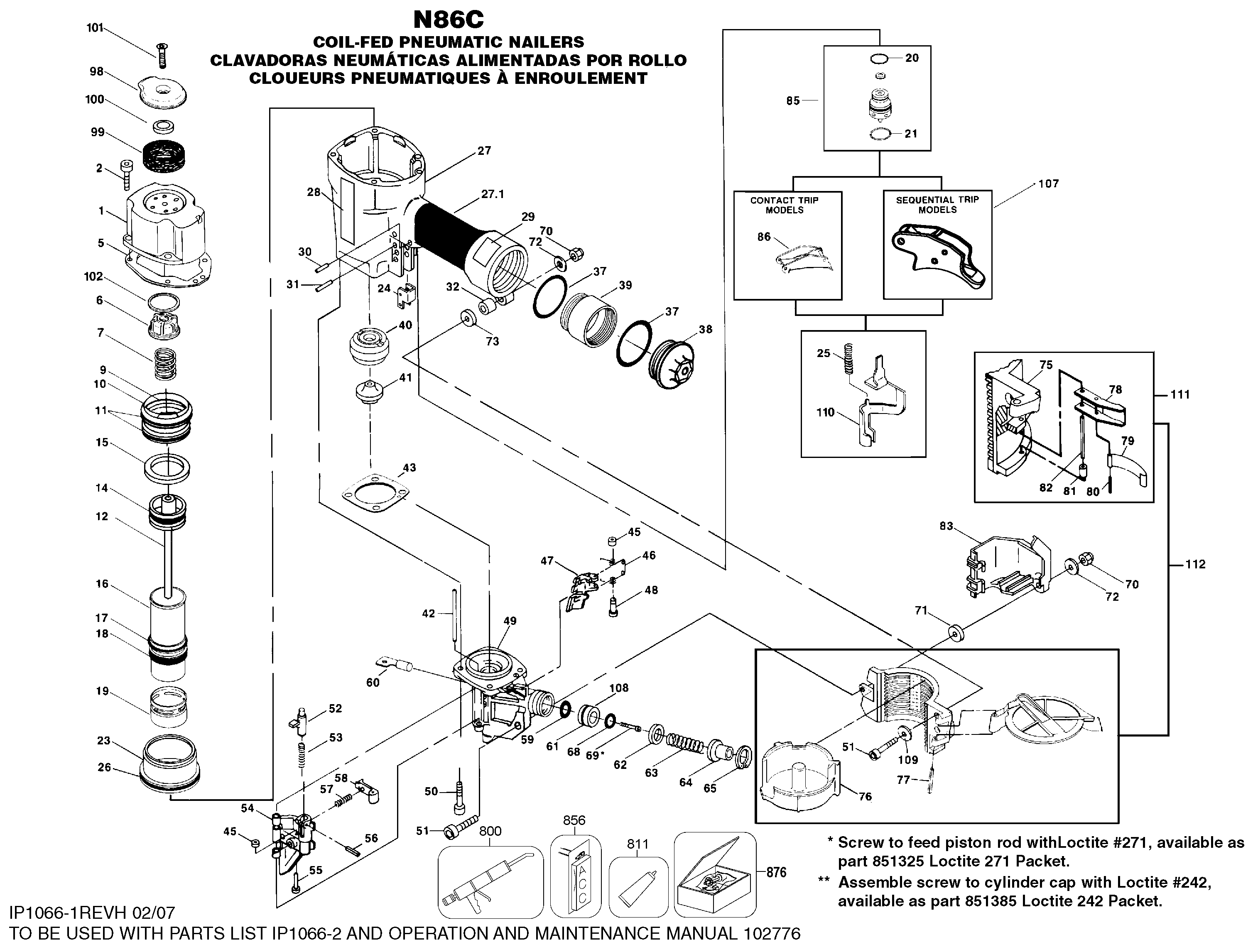

Click the #Number to see the part in the interactive diagram. Showing 95 Parts

#1 - CAP (SERVICE PART)

  • Part # 105591 i
  • Description CAP (SERVICE PART)
  • Availability Discontinued
  • List Price $82.26
  • Note : N/A

#2 - BOLT

  • Part # MSC6100-25 i
  • Description BOLT
  • Availability inStock
  • List Price $1.25
  • Note : N/A

#5 - SEAL

  • Part # 9R199852 i
  • Description SEAL
  • Availability inStock
  • List Price $5.35
  • Note : N/A

#6 - STOP

  • Part # N86132 i
  • Description STOP
  • Availability Discontinued
  • List Price $8.40
  • Note : N/A

#7 - SPRING

  • Part # 854017-S i
  • Description SPRING
  • Availability Discontinued
  • List Price $4.88
  • Note : N/A

#9 - O RING

  • Part # MRG051531 i
  • Description O RING
  • Availability Discontinued
  • List Price $3.63
  • Note : N/A

#10 - VALVE

  • Part # 105578 i
  • Description VALVE
  • Availability Discontinued
  • List Price $38.62
  • Note : N/A

#11 - O RING

  • Part # 851538 i
  • Description O RING
  • Availability Discontinued
  • List Price $3.07
  • Note : N/A

#12 - ASSEMBLY-DRIVER/PIST

  • Part # N86112A i
  • Description ASSEMBLY-DRIVER/PIST
  • Availability Discontinued
  • List Price $53.21
  • Note : N/A

#14 - O RING

  • Part # 851606-S i
  • Description O RING
  • Availability BackOrdered (Due in Stock To Be Determined)
  • List Price $5.91
  • Note : N/A

#15 - SEAL

  • Part # N86125 i
  • Description SEAL
  • Availability Discontinued
  • List Price $6.30
  • Note : N/A

#16 - CYLINDER SLEEVE

  • Part # N86106 i
  • Description CYLINDER SLEEVE
  • Availability Discontinued
  • List Price $87.45
  • Note : N/A

#17 - O RING

  • Part # 89673 i
  • Description O RING
  • Availability inStock
  • List Price $3.43
  • Note : N/A

#18 - SEAL- CHECK

  • Part # N86108 i
  • Description SEAL- CHECK
  • Availability Discontinued
  • List Price $4.26
  • Note : N/A

#19 - LOWER SLEEVE

  • Part # N86102 i
  • Description LOWER SLEEVE
  • Availability Discontinued
  • List Price $56.85
  • Note : N/A

#23 - CYLINDER RING

  • Part # N86105 i
  • Description CYLINDER RING
  • Availability Discontinued
  • List Price $38.52
  • Note : N/A

#24 - GUIDE

  • Part # N70145 i
  • Description GUIDE
  • Availability inStock
  • List Price $4.33
  • Note : N/A

#25 - SPRING

  • Part # N80132 i
  • Description SPRING
  • Availability inStock
  • List Price $1.16
  • Note : N/A

#26 - O RING

  • Part # MRG084431 i
  • Description O RING
  • Availability inStock
  • List Price $3.03
  • Note : N/A

#27 - GRIP

  • Part # 107490 i
  • Description GRIP
  • Availability BackOrdered (Due in Stock No ETA)
  • List Price $3.52
  • Note : N/A

#27 - FRAME

  • Part # 110005 i
  • Description FRAME
  • Availability In Stock. Limited Quantities
  • List Price $71.37
  • Note : N/A

#28 - LABEL

  • Part # 112767 i
  • Description LABEL
  • Availability inStock
  • List Price $1.10
  • Note : N/A

#29 - WARNING LABEL

  • Part # 159912 i
  • Description WARNING LABEL
  • Availability inStock
  • List Price $1.10
  • Note : N/A

#30 - PIN

  • Part # MPP030020 i
  • Description PIN
  • Availability inStock
  • List Price $1.25
  • Note : N/A

#31 - PIN

  • Part # 102549 i
  • Description PIN
  • Availability inStock
  • List Price $1.22
  • Note : N/A

#32 - BUSHING

  • Part # N70143 i
  • Description BUSHING
  • Availability inStock
  • List Price $2.37
  • Note : N/A

#37 - O RING

  • Part # MRG049431 i
  • Description O RING
  • Availability inStock
  • List Price $1.16
  • Note : N/A

#38 - END CAP

  • Part # N70167 i
  • Description END CAP
  • Availability inStock
  • List Price $9.43
  • Note : N/A

#39 - FRAME

  • Part # N86113 i
  • Description FRAME
  • Availability Discontinued
  • List Price $35.56
  • Note : N/A

#40 - BUMPER

  • Part # N86110 i
  • Description BUMPER
  • Availability Discontinued
  • List Price $20.63
  • Note : N/A

#41 - GUIDE

  • Part # N80130 i
  • Description GUIDE
  • Availability inStock
  • List Price $6.00
  • Note : N/A

#42 - PIN

  • Part # N80125 i
  • Description PIN
  • Availability inStock
  • List Price $3.43
  • Note : N/A

#43 - GASKET

  • Part # N80354 i
  • Description GASKET
  • Availability inStock
  • List Price $1.22
  • Note : N/A

#45 - WASHER

  • Part # 854004 i
  • Description WASHER
  • Availability inStock
  • List Price $2.04
  • Note : N/A

#46 - SPRING TORSION

  • Part # N80120 i
  • Description SPRING TORSION
  • Availability inStock
  • List Price $1.22
  • Note : N/A

#47 - PAWL

  • Part # N80119 i
  • Description PAWL
  • Availability In Stock. Limited Quantities
  • List Price $11.44
  • Note : N/A

#48 - PIN

  • Part # N50087 i
  • Description PIN
  • Availability inStock
  • List Price $4.31
  • Note : N/A

#49 - NOSE

  • Part # N80158 i
  • Description NOSE
  • Availability inStock
  • List Price $255.73
  • Note : N/A

#50 - SCREW

  • Part # MSC8125-28 i
  • Description SCREW
  • Availability inStock
  • List Price $1.22
  • Note : N/A

#51 - SCREW

  • Part # MSC6100-40 i
  • Description SCREW
  • Availability inStock
  • List Price $1.35
  • Note : N/A

#52 - LATCH

  • Part # N70150 i
  • Description LATCH
  • Availability inStock
  • List Price $12.41
  • Note : N/A

#53 - SPRING COMPRESSION

  • Part # 854013 i
  • Description SPRING COMPRESSION
  • Availability inStock
  • List Price $1.22
  • Note : N/A

#54 - DOOR

  • Part # N80126 i
  • Description DOOR
  • Availability In Stock. Limited Quantities
  • List Price $26.90
  • Note : N/A

#55 - PIN

  • Part # N70140 i
  • Description PIN
  • Availability inStock
  • List Price $3.10
  • Note : N/A

#56 - ROLL PIN

  • Part # MPP030012 i
  • Description ROLL PIN
  • Availability inStock
  • List Price $1.30
  • Note : N/A

#57 - SPRING COMPRESSION

  • Part # 854011 i
  • Description SPRING COMPRESSION
  • Availability inStock
  • List Price $1.82
  • Note : N/A

#58 - PAWL

  • Part # N70149 i
  • Description PAWL
  • Availability inStock
  • List Price $18.82
  • Note : N/A

#59 - O RING

  • Part # MRG009824 i
  • Description O RING
  • Availability inStock
  • List Price $9.39
  • Note : N/A

#60 - ROD

  • Part # N80121 i
  • Description ROD
  • Availability inStock
  • List Price $9.27
  • Note : N/A

#61 - O RING

  • Part # 851384 i
  • Description O RING
  • Availability inStock
  • List Price $11.81
  • Note : N/A

#62 - BUMPER

  • Part # N80123 i
  • Description BUMPER
  • Availability inStock
  • List Price $1.16
  • Note : N/A

#63 - SPRING COMPRESSION

  • Part # N80122 i
  • Description SPRING COMPRESSION
  • Availability inStock
  • List Price $1.16
  • Note : N/A

#64 - COVER

  • Part # N80124 i
  • Description COVER
  • Availability In Stock. Limited Quantities
  • List Price $1.20
  • Note : N/A

#65 - RING

  • Part # 851383 i
  • Description RING
  • Availability inStock
  • List Price $1.16
  • Note : N/A

#68 - WASHER LOCK

  • Part # LW14.2 i
  • Description WASHER LOCK
  • Availability inStock
  • List Price $1.16
  • Note : N/A

#69 - SCREW

  • Part # MSC6100-16 i
  • Description SCREW
  • Availability inStock
  • List Price $1.44
  • Note : N/A

#70 - NUT

  • Part # MHE6100-100 i
  • Description NUT
  • Availability inStock
  • List Price $1.22
  • Note : N/A

#71 - SPACER

  • Part # 105973 i
  • Description SPACER
  • Availability inStock
  • List Price $1.20
  • Note : N/A

#72 - WASHER

  • Part # MPW6.2 i
  • Description WASHER
  • Availability inStock
  • List Price $1.22
  • Note : N/A

#73 - SPACER

  • Part # N80107 i
  • Description SPACER
  • Availability BackOrdered (Due in Stock 05/23/2025)
  • List Price $1.16
  • Note : N/A

#76 - CANISTER

  • Part # N80103 i
  • Description CANISTER
  • Availability inStock
  • List Price $17.72
  • Note : N/A

#77 - SPIROL PIN

  • Part # UB5130 i
  • Description SPIROL PIN
  • Availability In Stock. Limited Quantities
  • List Price $1.16
  • Note : N/A

#78 - LATCH

  • Part # 107455 i
  • Description LATCH
  • Availability inStock
  • List Price $1.10
  • Note : N/A

#79 - LEAF SPRING

  • Part # N80108 i
  • Description LEAF SPRING
  • Availability inStock
  • List Price $1.16
  • Note : N/A

#80 - SPIROL PIN

  • Part # UB2110.4 i
  • Description SPIROL PIN
  • Availability inStock
  • List Price $1.16
  • Note : N/A

#81 - SPACER

  • Part # N80106 i
  • Description SPACER
  • Availability inStock
  • List Price $1.16
  • Note : N/A

#82 - SPIROL PIN

  • Part # UB2126 i
  • Description SPIROL PIN
  • Availability BackOrdered (Due in Stock No ETA)
  • List Price $1.10
  • Note : N/A

#83 - GUARD

  • Part # N80131 i
  • Description GUARD
  • Availability inStock
  • List Price $6.99
  • Note : N/A

#85 - VALVE

  • Part # TVA6 i
  • Description VALVE
  • Availability inStock
  • List Price $31.96
  • Note : N/A

#86 - KIT

  • Part # CNTK2 i
  • Description KIT
  • Availability inStock
  • List Price $17.01
  • Note : N/A

#98 - MUFFLER

  • Part # N100134A i
  • Description MUFFLER
  • Availability Discontinued
  • List Price $35.18
  • Note : N/A

#99 - MUFFLER

  • Part # N100136 i
  • Description MUFFLER
  • Availability inStock
  • List Price $3.81
  • Note : N/A

#100 - SPACER

  • Part # N100138 i
  • Description SPACER
  • Availability Discontinued
  • List Price $2.30
  • Note : N/A

#102 - RING

  • Part # N100137 i
  • Description RING
  • Availability inStock
  • List Price $14.18
  • Note : N/A

#107 - KIT

  • Part # SEQ6 i
  • Description KIT
  • Availability inStock
  • List Price $13.40
  • Note : N/A

#108 - PISTON

  • Part # N80128 i
  • Description PISTON
  • Availability inStock
  • List Price $3.45
  • Note : N/A

#109 - WASHER

  • Part # MPW6.3 i
  • Description WASHER
  • Availability inStock
  • List Price $1.16
  • Note : N/A

#110 - CONTACT

  • Part # N80127 i
  • Description CONTACT
  • Availability inStock
  • List Price $60.08
  • Note : N/A

#111 - BRACKET SA

  • Part # 121632 i
  • Description BRACKET SA
  • Availability BackOrdered (Due in Stock 05/09/2025)
  • List Price $23.10
  • Note : N/A

#112 - CANISTER

  • Part # 121635 i
  • Description CANISTER
  • Availability inStock
  • List Price $32.41
  • Note : N/A

#800 - GREASE

  • Part # 100679 i
  • Description GREASE
  • Availability inStock
  • List Price $45.73
  • Note : N/A

#800 - LUBE (2CC)

  • Part # 9R206705 i
  • Description LUBE (2CC)
  • Availability inStock
  • List Price $1.98
  • Note : N/A

#811 - LOCTITE 271

  • Part # 851325 i
  • Description LOCTITE 271
  • Availability In Stock. Limited Quantities
  • List Price $28.47
  • Note : N/A

#811 - LOCTITE 242

  • Part # 851385 i
  • Description LOCTITE 242
  • Availability In Stock. Limited Quantities
  • List Price $27.50
  • Note : N/A

#856 - ASSY-ADJUSTABLE CONT

  • Part # 105005 i
  • Description ASSY-ADJUSTABLE CONT
  • Availability Discontinued
  • List Price $100.46
  • Note : N/A

#876 - DIAL-A-DEPTH KIT

  • Part # DC3 i
  • Description DIAL-A-DEPTH KIT
  • Availability Discontinued
  • List Price $35.24
  • Note : Incl 25

# - GREASE

  • Part # 100653 i
  • Description GREASE
  • Availability Substituted (New Part# 9R206705)
  • List Price
  • Note : N/A

# - GEAR

  • Part # 851606 i
  • Description GEAR
  • Availability Substituted (New Part# 851606-S)
  • List Price
  • Note : N/A

# - FIELDCASE

  • Part # 854017 i
  • Description FIELDCASE
  • Availability Discontinued
  • List Price $6.56
  • Note : N/A

# - O RING

  • Part # 86459 i
  • Description O RING
  • Availability inStock
  • List Price $7.87
  • Note : N/A

# - ANGLED COIL NAIL

  • Part # AC6DSP099GAL i
  • Description ANGLED COIL NAIL
  • Availability Contact Service Center
  • List Price N/A
  • Note : Not Included with Unit

# - O RING

  • Part # MRG019824 i
  • Description O RING
  • Availability inStock
  • List Price $20.30
  • Note : N/A

# - SCREW

  • Part # MSS5080-5P i
  • Description SCREW
  • Availability Discontinued
  • List Price $0.54
  • Note : N/A

# - SEAL

  • Part # N70118 i
  • Description SEAL
  • Availability Substituted (New Part# 9R199852)
  • List Price
  • Note : N/A

# - KIT-TRIGGER VALVE

  • Part # TVA6-1 i
  • Description KIT-TRIGGER VALVE
  • Availability Substituted (New Part# TVA6)
  • List Price
  • Note : N/A

Why you should buy parts/service with us?

High Quality

Buy high reliable products for your critical projects.

Expert Technicians

We have certified experts, who can resolve any issues of the product.

Quick Support

Our Support lines are open to support all your queries.

Convenient Delivery

Delivered to you at your convenient place.

100% Secured Checkout

We follow highest security standards to make your transaction safe.
