MCF894-CA

  • View parts by Products
  • View parts by Drawing
Model Type: 1
Model #MCF894-CA Qualify for free shipping on orders over$150!

This model has different types(If you need help finding your type number, please click here)

Type 1 Type 11

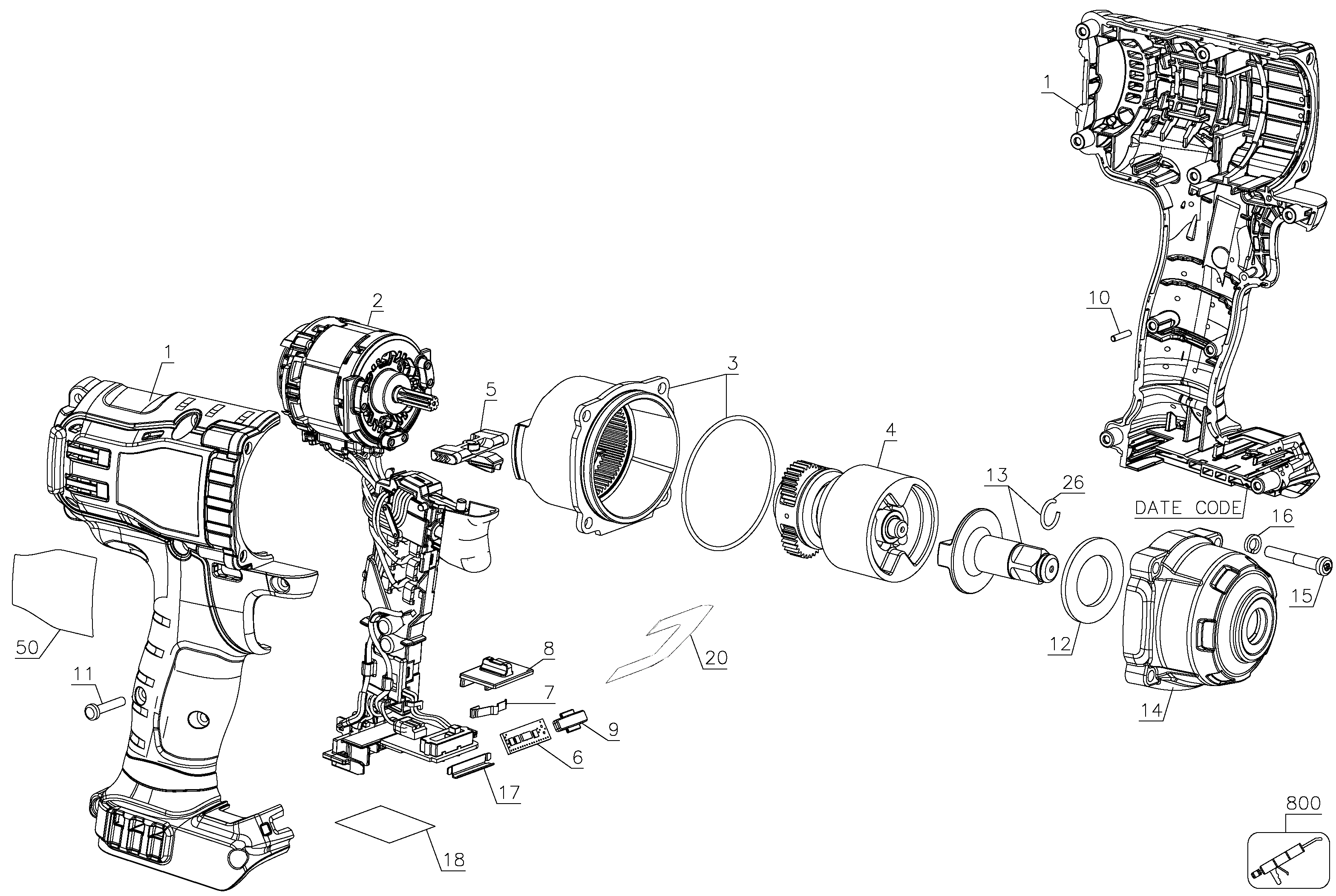

Click the #Number to see the part in the interactive diagram. Showing 22 Parts

#1 - CLAMSHELL SET

#2 - MOTOR & SWITCH ASSY.

  • Part # N536355
  • Description MOTOR & SWITCH ASSY.
  • Availability inStock
  • List Price $120.13
  • Note : Motor & Bumpers & Module

#3 - GEARCASE SA

  • Part # N536347
  • Description GEARCASE SA
  • Availability inStock
  • List Price $22.83
  • Note :

#4 - IMPACTOR

  • Part # N536354
  • Description IMPACTOR
  • Availability inStock
  • List Price $69.55
  • Note :

#5 - ACTUATOR FWD/REV

#6 - LED LIGHT

  • Part # N231799
  • Description LED LIGHT
  • Availability inStock
  • List Price $2.54
  • Note :

#7 - DETENT

  • Part # N392855
  • Description DETENT
  • Availability inStock
  • List Price $1.00
  • Note :

#8 - SELECTOR

#9 - LENS

  • Part # N394333
  • Description LENS
  • Availability inStock
  • List Price $1.00
  • Note :

#10 - ROLL PIN

  • Part # N071836
  • Description ROLL PIN
  • Availability inStock
  • List Price $1.00
  • Note :

#11 - SCREW

  • Part # 330019-04
  • Description SCREW
  • Availability inStock
  • List Price $1.05
  • Note :

#12 - WASHER THRUST

  • Part # N510740
  • Description WASHER THRUST
  • Availability inStock
  • List Price $1.05
  • Note :

#13 - ANVIL ASSEMBLY

  • Part # N571383
  • Description ANVIL ASSEMBLY
  • Availability inStock
  • List Price $23.13
  • Note :

#15 - SCREW

  • Part # N516846
  • Description SCREW
  • Availability inStock
  • List Price $1.05
  • Note :

#16 - WASHER LOCK

  • Part # N529458
  • Description WASHER LOCK
  • Availability In Stock. Limited Quantities
  • List Price $1.00
  • Note :

#17 - PLATE

  • Part # N525535
  • Description PLATE
  • Availability Discontinued
  • List Price $1.00
  • Note : NOT USED ON TYPE 11

#18 - WARNING LABEL

#20 - LABEL

  • Part # N561587
  • Description LABEL
  • Availability BackOrdered (Due in Stock No ETA)
  • List Price $1.00
  • Note :

#26 - O RING

  • Part # N455088
  • Description O RING
  • Availability inStock
  • List Price $1.05
  • Note :

#50 - RATING LABEL

#800 - GREASE

  • Part # N108694
  • Description GREASE
  • Availability Discontinued
  • List Price $43.39
  • Note :

# - CLAMSHELL SET
