black & decker

BH200-AR

  • View parts by Products
  • View parts by Drawing
Model Type: 1
Model #BH200-AR Qualify for free shipping on orders over$150!

This model has different types(If you need help finding your type number, please click here)

Type 1 Type 2 Type 3

Documents

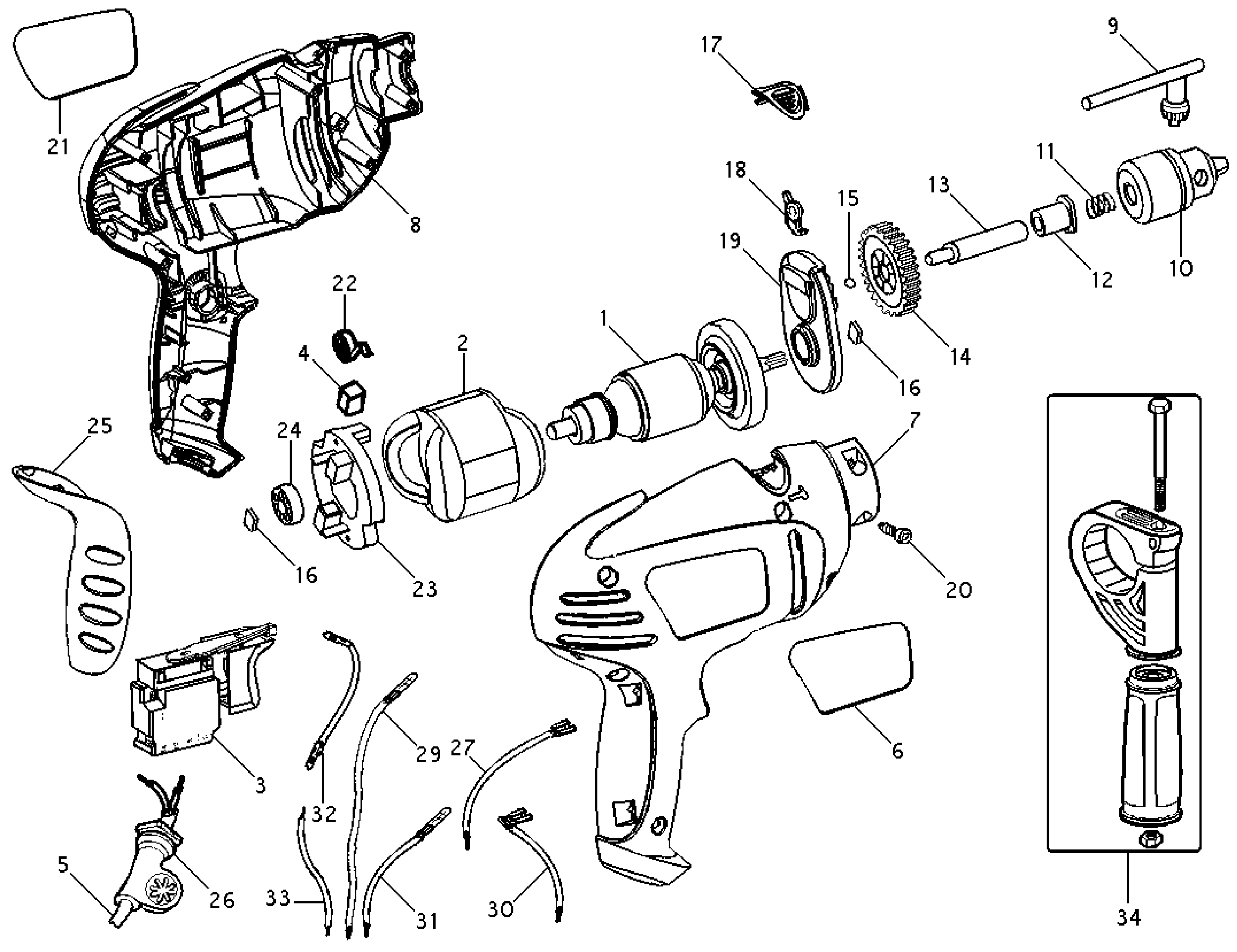

Click the #Number to see the part in the interactive diagram. Showing 40 Parts

#1 - ARMATURE 220V

#2 - FIELD

#3 - SWITCH

#4 - BRUSH

#5 - CORD

#6 - NAME PLATE

#8 - CLAMSHELL PAIR

#8 - CLAMSHELL PAIR

#9 - CHUCK KEY

#11 - SPRING

  • Part # 821986-00 i
  • Description SPRING
  • Availability Discontinued
  • List Price $1.00
  • Note :

#12 - BUSH

#13 - SERVICE KIT

#13 - SERVICE KIT

#14 - GEAR

#15 - BALL

#16 - PLATE

#17 - ACTUATOR

#18 - PLATE THRUST

#19 - BEARING BLOCK

#20 - SCREW

  • Part # 330019-04 i
  • Description SCREW
  • Availability inStock
  • List Price $1.05
  • Note :

#21 - LABEL

#22 - SPRING

#23 - BRUSH HOLDER

#24 - BEARING

  • Part # 148814-00 i
  • Description BEARING
  • Availability inStock
  • List Price $1.00
  • Note :

#25 - HANDLE COVER

#26 - PROTECTOR

  • Part # 770236 i
  • Description PROTECTOR
  • Availability In Stock. Limited Quantities
  • List Price $1.00
  • Note :

#27 - LEAD

#29 - LEAD

#30 - LEAD

#31 - LEAD

#32 - LEAD

#33 - LEAD

#34 - SIDE HANDLE

  • Part # 185559-00 i
  • Description SIDE HANDLE
  • Availability In Stock. Limited Quantities
  • List Price $3.43
  • Note :

# - SPINDLE

  • Part # 185657-00 i
  • Description SPINDLE
  • Availability Substituted (New Part# 187428-00)
  • List Price
  • Note :

# - CHUCK & KEY

  • Part # 185670-00 i
  • Description CHUCK & KEY
  • Availability Substituted (New Part# 187429-00)
  • List Price
  • Note :

# - HOUSING COVER

  • Part # 185699-00 i
  • Description HOUSING COVER
  • Availability Substituted (New Part# 186188-00)
  • List Price
  • Note :

# - HOUSING,ASSY.

  • Part # 185700-00 i
  • Description HOUSING,ASSY.
  • Availability Substituted (New Part# 186188-00)
  • List Price
  • Note :

# - LABEL

  • Part # 185703-00 i
  • Description LABEL
  • Availability Substituted (New Part# 186181-00)
  • List Price
  • Note :

# - THRUST PLATE

  • Part # 186040-00 i
  • Description THRUST PLATE
  • Availability Substituted (New Part# 186452-00)
  • List Price
  • Note :

# - PROTECTOR,CORD

  • Part # 770236-00 i
  • Description PROTECTOR,CORD
  • Availability Substituted (New Part# 770236)
  • List Price
  • Note :
