black & decker

C2020K

  • View parts by Products
  • View parts by Drawing
Model Type: 1
Model #C2020K Qualify for free shipping on orders over$150!
Type 1

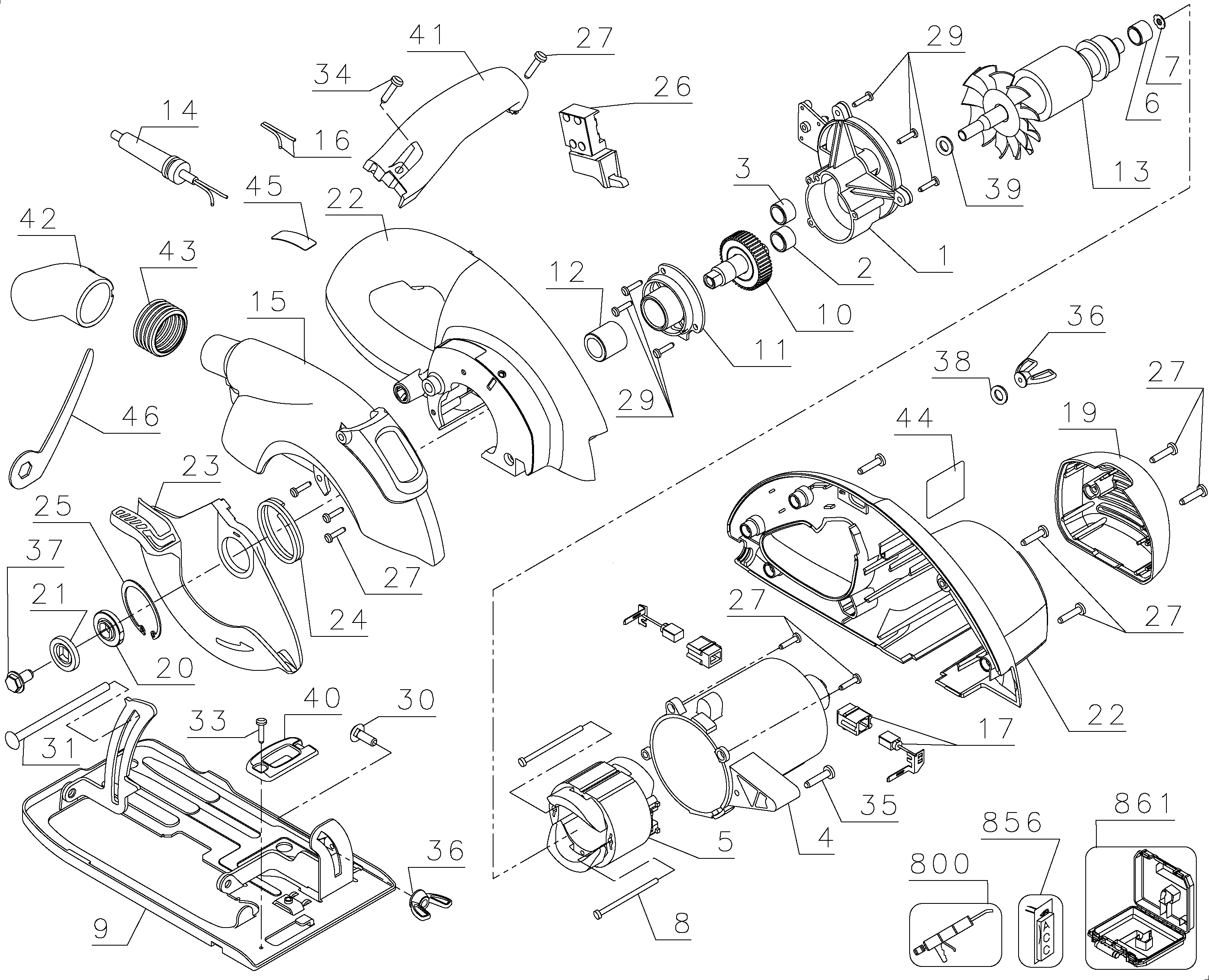

Click the #Number to see the part in the interactive diagram. Showing 53 Parts

#1 - GEAR CASE ASSY

  • Part # 381712-00 i
  • Description GEAR CASE ASSY
  • Availability Discontinued
  • List Price $8.55
  • Note : INC 2 3

#2 - BEARING,SLEEVE

  • Part # 381715-00 i
  • Description BEARING,SLEEVE
  • Availability Discontinued
  • List Price $1.42
  • Note : N/A

#3 - BEARING,SLEEVE

  • Part # 381717-00 i
  • Description BEARING,SLEEVE
  • Availability Discontinued
  • List Price $1.89
  • Note : N/A

#4 - CASE,FIELD

  • Part # 381677-01 i
  • Description CASE,FIELD
  • Availability Discontinued
  • List Price $6.46
  • Note : N/A

#5 - FIELD

  • Part # 381711-00SV i
  • Description FIELD
  • Availability Discontinued
  • List Price $31.87
  • Note : N/A

#6 - BEARING,SLEEVE

  • Part # 381710-00 i
  • Description BEARING,SLEEVE
  • Availability Discontinued
  • List Price $1.90
  • Note : N/A

#7 - PLATE,THRUST

  • Part # 382996-00 i
  • Description PLATE,THRUST
  • Availability Discontinued
  • List Price $1.39
  • Note : N/A

#8 - SCREW

  • Part # 330019-30 i
  • Description SCREW
  • Availability inStock
  • List Price $1.05
  • Note : N/A

#9 - SHOE ASSY

  • Part # 381701-00 i
  • Description SHOE ASSY
  • Availability Discontinued
  • List Price $23.61
  • Note : N/A

#10 - SPINDLE ASSY

  • Part # 382989-00 i
  • Description SPINDLE ASSY
  • Availability Discontinued
  • List Price $9.99
  • Note : N/A

#11 - GR.CASE CVR.ASY

  • Part # 381716-00 i
  • Description GR.CASE CVR.ASY
  • Availability Discontinued
  • List Price $6.55
  • Note : INC 12

#12 - BEARING,SLEEVE

  • Part # 381714-00 i
  • Description BEARING,SLEEVE
  • Availability Discontinued
  • List Price $1.89
  • Note : N/A

#13 - ARMATURE & FAN

  • Part # 381702-02 i
  • Description ARMATURE & FAN
  • Availability Discontinued
  • List Price $21.94
  • Note : N/A

#14 - CORD/8'/18-2SJT

  • Part # 330073-96 i
  • Description CORD/8'/18-2SJT
  • Availability inStock
  • List Price $24.81
  • Note : N/A

#15 - UPPER GUARD ASY

  • Part # 383002-00 i
  • Description UPPER GUARD ASY
  • Availability Discontinued
  • List Price $13.77
  • Note : N/A

#16 - LEAD

  • Part # 382998-00 i
  • Description LEAD
  • Availability Discontinued
  • List Price $0.69
  • Note : N/A

#17 - BRUSH HLDR.ASSY

  • Part # 381723-00 i
  • Description BRUSH HLDR.ASSY
  • Availability BackOrdered (Due in Stock No ETA)
  • List Price $1.73
  • Note : N/A

#19 - CAP,END

  • Part # 381690-00 i
  • Description CAP,END
  • Availability Discontinued
  • List Price $3.03
  • Note : N/A

#20 - BLADE CLAMP

  • Part # 142949-00 i
  • Description BLADE CLAMP
  • Availability Discontinued
  • List Price $1.11
  • Note : N/A

#21 - CLAMP

  • Part # 131404-01 i
  • Description CLAMP
  • Availability Discontinued
  • List Price $19.57
  • Note : N/A

#22 - CLAMSHELL,HNDLE

  • Part # 382997-00 i
  • Description CLAMSHELL,HNDLE
  • Availability Discontinued
  • List Price $15.97
  • Note : N/A

#23 - GUARD,LOWER

  • Part # 381676-00 i
  • Description GUARD,LOWER
  • Availability Discontinued
  • List Price $5.62
  • Note : N/A

#24 - SPRING

  • Part # 151918-00 i
  • Description SPRING
  • Availability Discontinued
  • List Price $0.88
  • Note : N/A

#25 - RING,RETAINING

  • Part # 147187-00 i
  • Description RING,RETAINING
  • Availability Discontinued
  • List Price $2.37
  • Note : N/A

#26 - SWITCH,ON/OFF

  • Part # 381699-00 i
  • Description SWITCH,ON/OFF
  • Availability Discontinued
  • List Price $6.18
  • Note : N/A

#27 - SCREW

  • Part # 330019-14 i
  • Description SCREW
  • Availability inStock
  • List Price $1.16
  • Note : N/A

#29 - SCREW

  • Part # 330045-06 i
  • Description SCREW
  • Availability inStock
  • List Price $1.42
  • Note : N/A

#30 - BOLT

  • Part # 68335-00 i
  • Description BOLT
  • Availability Discontinued
  • List Price $0.88
  • Note : N/A

#31 - SCREW

  • Part # 679139-00 i
  • Description SCREW
  • Availability Discontinued
  • List Price $1.10
  • Note : N/A

#33 - SCREW

  • Part # 330024-04 i
  • Description SCREW
  • Availability In Stock. Limited Quantities
  • List Price $1.10
  • Note : N/A

#34 - SCREW

  • Part # 382991-00 i
  • Description SCREW
  • Availability Discontinued
  • List Price $0.59
  • Note : N/A

#35 - SCREW,M5X37 T25

  • Part # 383001-00 i
  • Description SCREW,M5X37 T25
  • Availability Discontinued
  • List Price $0.61
  • Note : N/A

#36 - WING NUT

  • Part # 090914-00 i
  • Description WING NUT
  • Availability Discontinued
  • List Price $1.10
  • Note : N/A

#37 - SCREW

  • Part # 70907-00 i
  • Description SCREW
  • Availability Discontinued
  • List Price $1.06
  • Note : N/A

#38 - WASHER

  • Part # 5130830-00 i
  • Description WASHER
  • Availability inStock
  • List Price $1.11
  • Note : N/A

#39 - WASHER,SPRING

  • Part # 383005-00 i
  • Description WASHER,SPRING
  • Availability Discontinued
  • List Price $0.88
  • Note : N/A

#40 - GUIDE

  • Part # 383003-00 i
  • Description GUIDE
  • Availability Discontinued
  • List Price $1.90
  • Note : N/A

#41 - HANDLE,FRONT

  • Part # 381691-00 i
  • Description HANDLE,FRONT
  • Availability Discontinued
  • List Price $3.03
  • Note : N/A

#42 - NOZZLE

  • Part # 381707-00 i
  • Description NOZZLE
  • Availability Discontinued
  • List Price $2.09
  • Note : N/A

#43 - COLLAR

  • Part # 382993-00 i
  • Description COLLAR
  • Availability Discontinued
  • List Price $1.14
  • Note : N/A

#44 - NP:C2020 T1

#45 - LABEL,WARNING

  • Part # 381719-01 i
  • Description LABEL,WARNING
  • Availability Discontinued
  • List Price $0.59
  • Note : N/A

#46 - WRENCH

  • Part # 381685-00 i
  • Description WRENCH
  • Availability Discontinued
  • List Price $1.58
  • Note : N/A

#800 - GREASE

  • Part # 429698-00 i
  • Description GREASE
  • Availability inStock
  • List Price $91.51
  • Note : N/A

#856 - 6-1/2 12T SAW BLADE-TRIL

  • Part # 73-590 i
  • Description 6-1/2 12T SAW BLADE-TRIL
  • Availability Contact Service Center
  • List Price N/A
  • Note : N/A

#861 - BOX,KIT

  • Part # 383010-01 i
  • Description BOX,KIT
  • Availability Discontinued
  • List Price $22.45
  • Note : N/A

#861 - NUT WING

  • Part # 392666-00 i
  • Description NUT WING
  • Availability In Stock. Limited Quantities
  • List Price $1.10
  • Note : N/A

# - BLADE CLAMP

  • Part # 131403-02 i
  • Description BLADE CLAMP
  • Availability Discontinued
  • List Price $1.10
  • Note : N/A

# - CORD,PWR.SUPPLY

  • Part # 330073-42 i
  • Description CORD,PWR.SUPPLY
  • Availability Substituted (New Part# 330073-96)
  • List Price
  • Note : N/A

# - ARMATURE & FAN

  • Part # 381702-01 i
  • Description ARMATURE & FAN
  • Availability Discontinued
  • List Price $21.12
  • Note : N/A

# - FIELD

  • Part # 381711-00 i
  • Description FIELD
  • Availability Substituted (New Part# 381711-00SV)
  • List Price
  • Note : N/A

# - NUT WING

  • Part # 90914-00 i
  • Description NUT WING
  • Availability Discontinued
  • List Price $1.00
  • Note : N/A

# - WASHER

  • Part # 99358-05 i
  • Description WASHER
  • Availability Substituted (New Part# 5130830-00)
  • List Price
  • Note : N/A
