black & decker

PC18RS

  • View parts by Products
  • View parts by Drawing
Model Type: 1
Model #PC18RS Qualify for free shipping on orders over$150!
Type 1

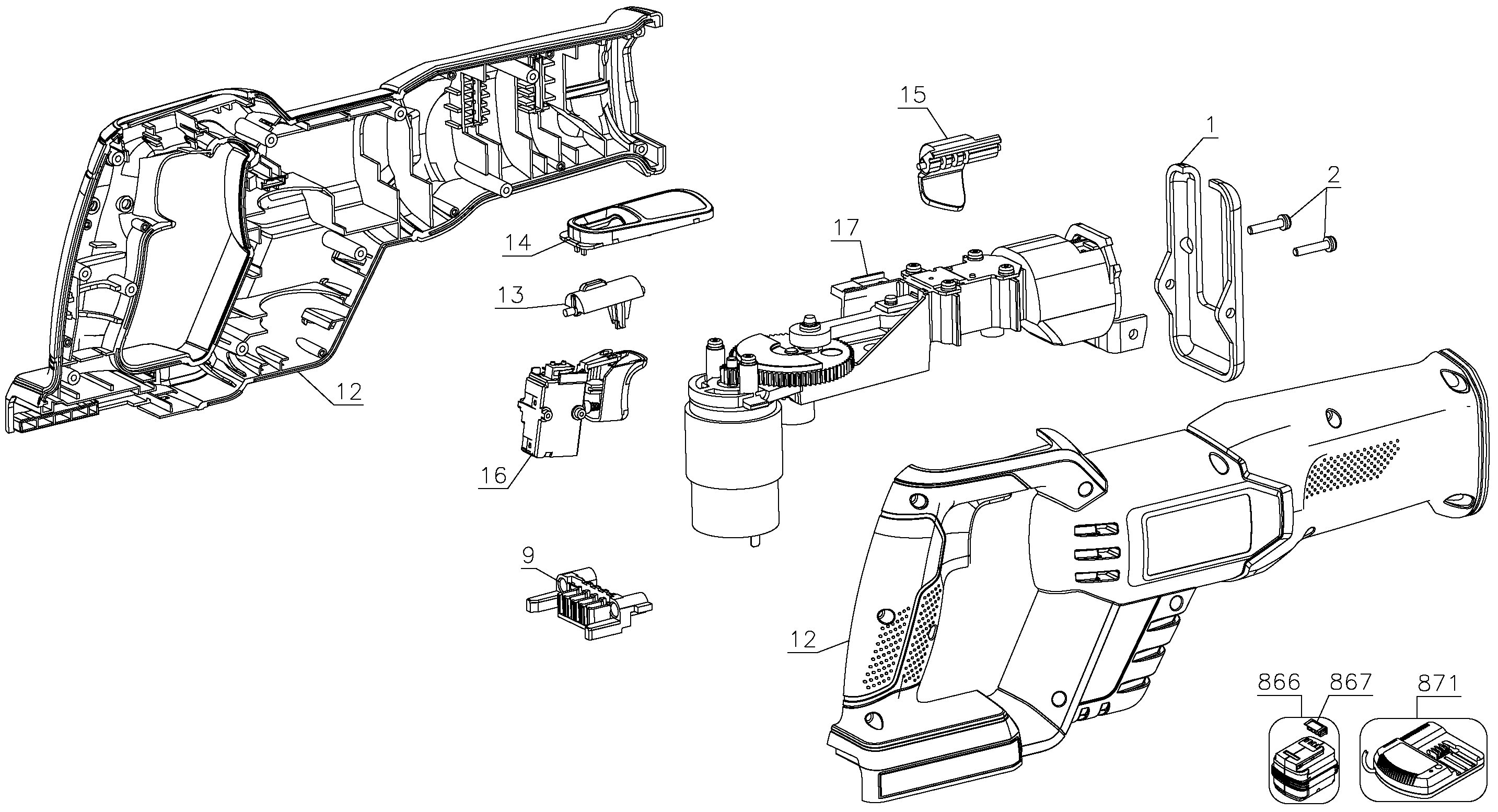

Click the #Number to see the part in the interactive diagram. Showing 17 Parts

#1 - SHOE

  • Part # 498755-02 i
  • Description SHOE
  • Availability inStock
  • List Price $7.97
  • Note : N/A

#2 - SCREW

  • Part # 498977-00 i
  • Description SCREW
  • Availability In Stock. Limited Quantities
  • List Price $1.00
  • Note : M4X20

#9 - TERMINAL BLOCK

  • Part # 90530646-02 i
  • Description TERMINAL BLOCK
  • Availability BackOrdered (Due in Stock No ETA)
  • List Price $1.00
  • Note : N/A

#12 - CLAMSHELL SET

  • Part # 90532686 i
  • Description CLAMSHELL SET
  • Availability Discontinued
  • List Price $28.96
  • Note : N/A

#13 - ACTUATOR,LOCKOFF

  • Part # 90532688 i
  • Description ACTUATOR,LOCKOFF
  • Availability Discontinued
  • List Price $1.00
  • Note : N/A

#14 - COVER

  • Part # 90532689 i
  • Description COVER
  • Availability In Stock. Limited Quantities
  • List Price $1.00
  • Note : N/A

#15 - LEVER

  • Part # 90533127 i
  • Description LEVER
  • Availability Discontinued
  • List Price $1.01
  • Note : N/A

#16 - SWITCH KIT

  • Part # 5140099-13 i
  • Description SWITCH KIT
  • Availability In Stock. Limited Quantities
  • List Price $19.15
  • Note : N/A

#17 - GEARCASE SA

  • Part # 90534035 i
  • Description GEARCASE SA
  • Availability In Stock. Limited Quantities
  • List Price $42.53
  • Note : Motor and gearcase assembly complete

#866 - BATTERY PACK

#867 - BATTERY COVER

  • Part # 90535852 i
  • Description BATTERY COVER
  • Availability Discontinued
  • List Price $1.66
  • Note : N/A

#871 - CHARGER

# - CAP

  • Part # 5102026-00 i
  • Description CAP
  • Availability BackOrdered (Due in Stock To Be Determined)
  • List Price $1.00
  • Note : N/A

# - TERMINAL BLOCK

  • Part # 90530646 i
  • Description TERMINAL BLOCK
  • Availability Substituted (New Part# 90530646-02)
  • List Price
  • Note : N/A

# - SWITCH,VAR.SPD.

  • Part # 90533480 i
  • Description SWITCH,VAR.SPD.
  • Availability Substituted (New Part# 5140099-13)
  • List Price
  • Note : N/A

# - GEARCASE W/MOTOR

  • Part # 90533882 i
  • Description GEARCASE W/MOTOR
  • Availability Substituted (New Part# 90534035)
  • List Price
  • Note : N/A

# - CHARGER

  • Part # 90545445-02 i
  • Description CHARGER
  • Availability Discontinued
  • List Price $41.81
  • Note : N/A
