black & decker

B8144

  • View parts by Products
  • View parts by Drawing
Model Type: 5
Model #B8144 Qualify for free shipping on orders over$150!

This model has different types(If you need help finding your type number, please click here)

Type 1 Type 11 Type 2 Type 21 Type 3 Type 4 Type 5 Type 6 Type 7 Type 8

Documents

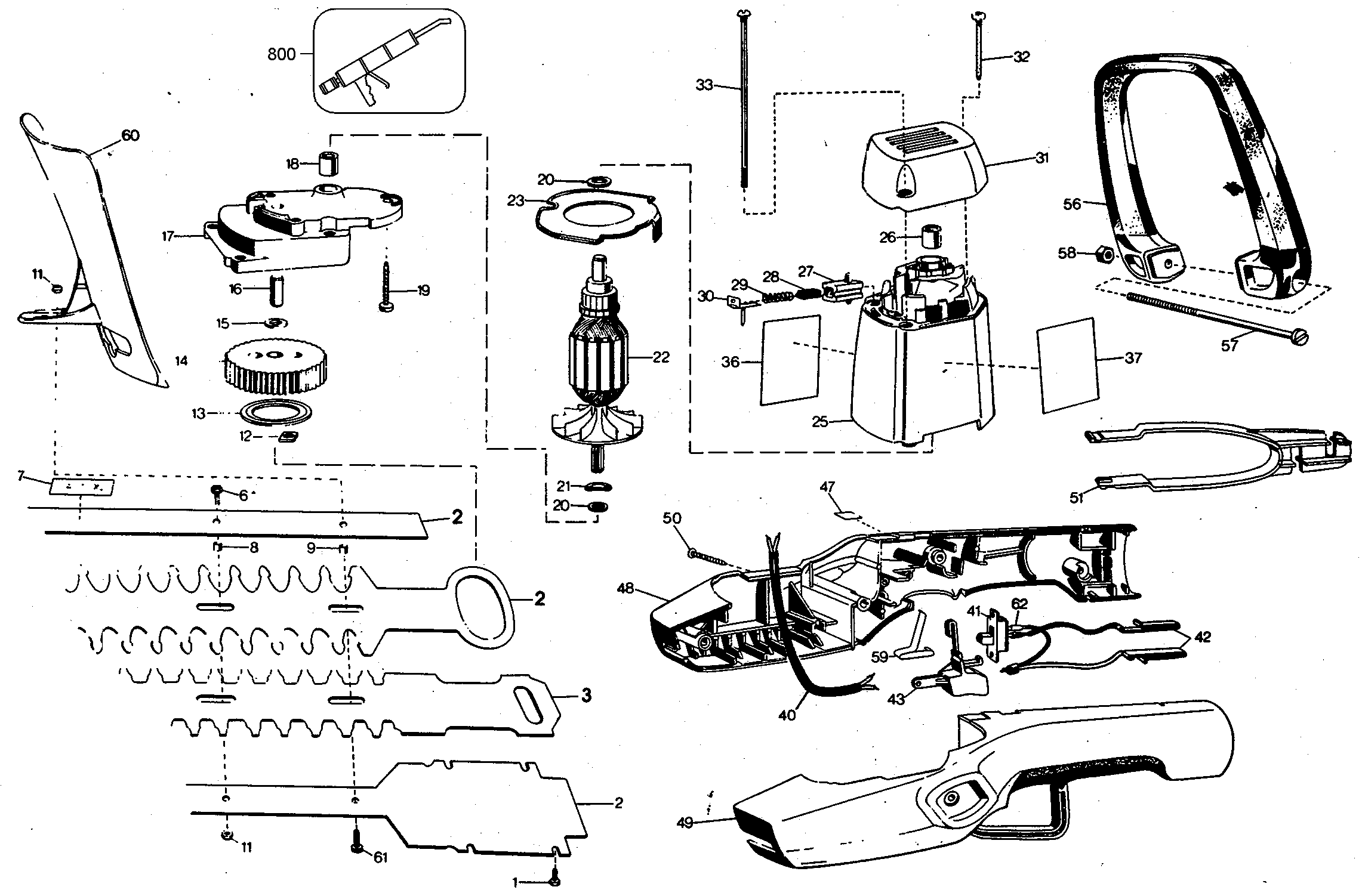

Click the #Number to see the part in the interactive diagram. Showing 12 Parts

#11 - NUT,STOP

  • Part # 381980-00 i
  • Description NUT,STOP
  • Availability Discontinued
  • List Price $1.00
  • Note :

#15 - WASHER

  • Part # 133952-00
  • Description WASHER
  • Availability Discontinued
  • List Price $1.00
  • Note :

#21 - WASHER SPRING

  • Part # 157315-00 i
  • Description WASHER SPRING
  • Availability Discontinued
  • List Price $1.00
  • Note :

#26 - BEARING

  • Part # 085931-00 i
  • Description BEARING
  • Availability inStock
  • List Price $1.94
  • Note :

#27 - BRUSH HOLDER

  • Part # 134252-00 i
  • Description BRUSH HOLDER
  • Availability inStock
  • List Price $1.00
  • Note :

#28 - BRUSH

  • Part # 089754-01 i
  • Description BRUSH
  • Availability inStock
  • List Price $1.04
  • Note :

#29 - BRUSH SPRING

  • Part # 085943-02 i
  • Description BRUSH SPRING
  • Availability inStock
  • List Price $1.16
  • Note :

#41 - BUTTON

  • Part # 383994-00 i
  • Description BUTTON
  • Availability inStock
  • List Price $1.92
  • Note :

#42 - TERMINAL

  • Part # 87486-00 i
  • Description TERMINAL
  • Availability inStock
  • List Price $1.00
  • Note :

#50 - SCREW

  • Part # 330019-13 i
  • Description SCREW
  • Availability inStock
  • List Price $1.29
  • Note :

#57 - NO LONGER AVAILABLE

#800 - GREASE

  • Part # 429698-00 i
  • Description GREASE
  • Availability inStock
  • List Price $70.05
  • Note :
